Trailed V Type Heavy Disc Harrow and Disk Harrow

FOB Reference Price:Get Latest Price
US $1,000-2,000 / Sets | 5 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Farm Cultivator
Power Type:
Diesel
Certification:
ISO,BV
Warranty:
ONE YEAR
Use:
field cultivation
Place of Origin:
Shandong, China (Mainland)
Brand Name:
QINGQUAN
Model Number:
LCBB-2024
Weight:
1800KG
20DISCS:
BLUE PAINTING
Supply Ability
Supply Ability:
200000 Set/Sets per Year
Packaging & Delivery
Packaging Details
IRON BOX
Port
QINGDAO
Lead Time :
30 DAYS

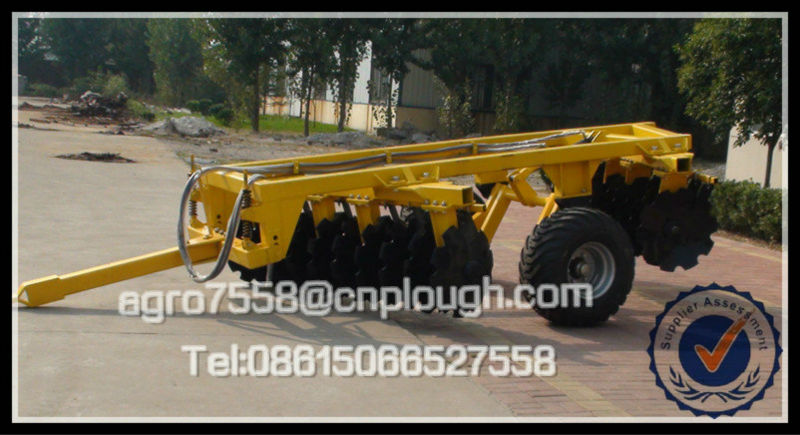

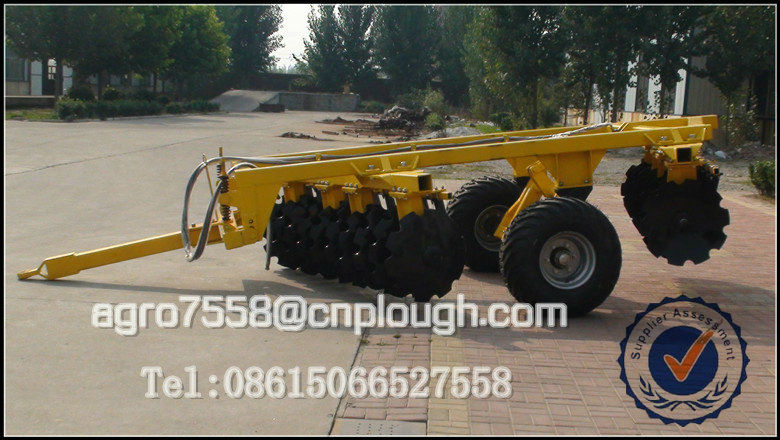

Trailed V Type Heavy Disc Harrow and Disk Harrow

LCBB series of heavy duty disc harrow was designed according to the europe standard .it adopt the features on hydraulic offset modular structure, built-bearing composite design, reasonable structure, bearing seal, long life, durable, easy to transport, easy to adjust, easy maintenance .it also can used to stubble before furrowing the land, get rid of surface compaction,chopped straw to field,leveling soil etc...this kind of harrow can plow the land replace the plough machine on the cultivated land.



Keywords:Disc Harrow,Disk harrow,Farm Harrow,Farm cultivator,Agricultural machinery and Equipment,Plough ,Plow,Rome Plow,Farm implement,Farm equipment



can fitted with  tractor of John Deere,Mahindra,Massey Ferguson,YTO,weituo,Foton Lovol,Jinma,Dongfeng,Changfa,Jiangsu,BOMR,Kama





Technical Parameters:





Model

Unit

LCBB-2024

Working width

mm

2.4

Working depth

mm

200/220

Q’ty of disc



20

Disc diameter

mm

660*6

distance between discs

mm

240

Linkage



trailed

Tyre type



7.50-16/11L-15

Overall weight



1800

Matched power

Hp



80-120

































disk harrow 001.jpgdisk harrow 002.jpg
